产品简介：
该机器具备真空功能，多适用于PET,PVC,PS 材料的产品，经常用于生产烘焙产品包装盒，鸡蛋托，电子托，各式各样的内盒包装托
INTRODUCTION:
The machine has vacuum function and is mostly used for PET, PVC and PS products. It is often used to produce baking product packaging boxes, egg holders, electronic holders and various inner box packaging holders
性能特点：
1. 成型面积大，成型深度深
2. 整机全伺服功能，定位精准
3. 节能省电陶瓷电炉
4. 更换模具简单易操作
5. 触摸屏操作功能简易明了
6. 真空储气桶大，真空力度更强
Function Characteristics
1. Large forming area and deeper forming depth
2. the whole machine has full servo function and accurate positioning
3. energy saving ceramic electric oven
4. it is easy to replace the mould
5. The touch screen operation function is simple and clear
6. large vacuum gas storage barrel with stronger vacuum force
Model No./Parameter | 型号/参数 | XS-1200 |
Style | 款式 | 全伺服Full servo |
Available Material | 适应物料 | PVC,PET ,PS ,PP |
Forming Area(mm) | 成型面积（mm） | 7200*1200 |
Forming Depth(mm) | 成型深度（mm） | 150 |
Forming Speed(cycle/min) | 成型速度（转/分） | 4-12 |
Max Width(mm) | 最大片材宽度（mm） | 410mm-710mm |
Thickness(mm) | 片材厚度（mm） | 0.15-1.5 |
Power of Whole Machine(kw) | 整机功率（kw） | 85 |
Air comsumption(Mpa) | 耗气量(Mpa) | 0.6-0.8 |
Water comsumption(Mpa) | 耗水量（m3/h） | ≦0.5 |
Dimension(mm) | 规格（mm） | 9800mm*1600mm*2650mm |

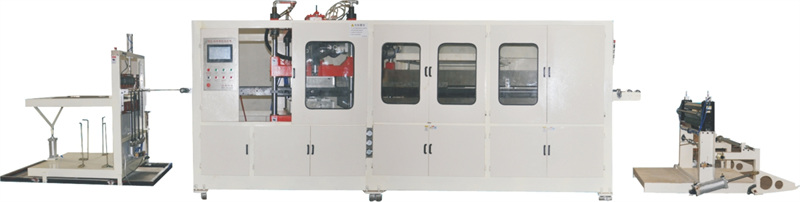

Machine component | 整机组成部分 | Cup thermoforming machine+Reel unwinder +Portable dismantling sheet winder主机+送片架+切片装置 |
