产品简介：
一次性包装容器，水杯，饭盒，汤碗，托盘等薄壁塑料制品。如果冻杯、冰淇淋杯、水果蔬盒、
椭圆餐盘、圆盘、面包盒，蛋糕盒，月饼托等

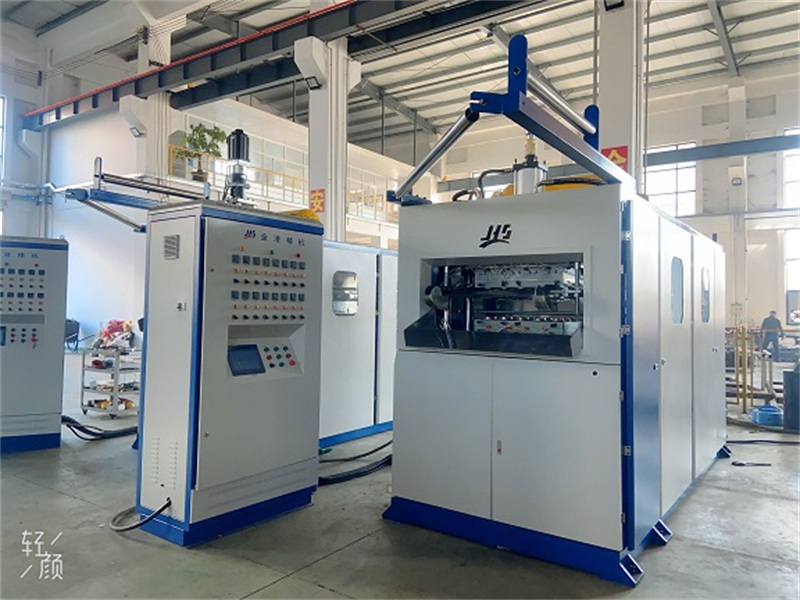

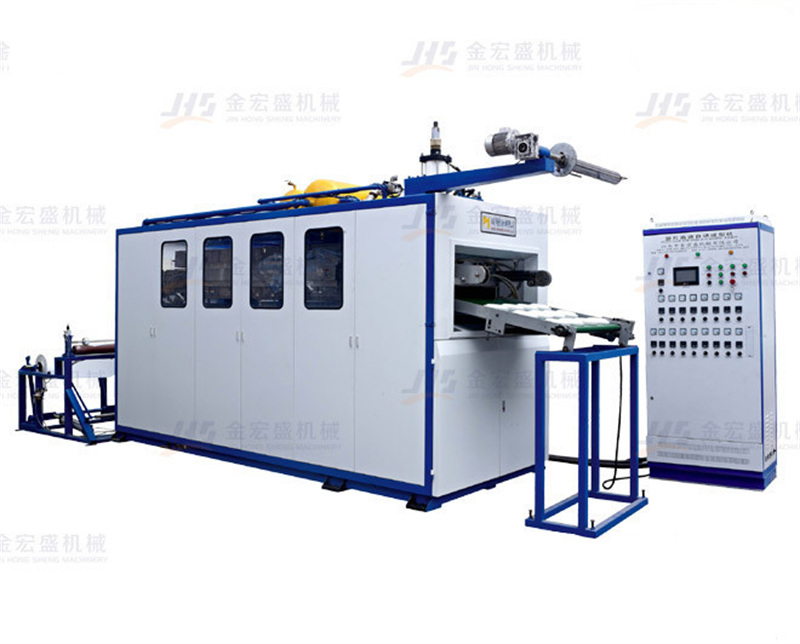

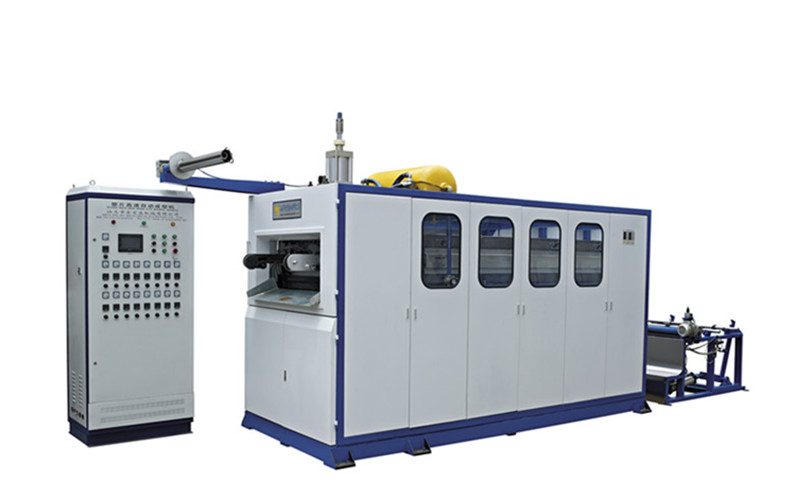

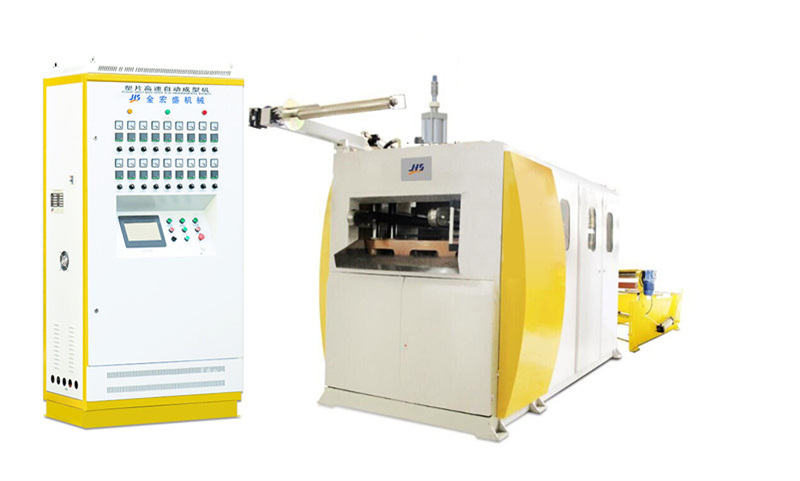

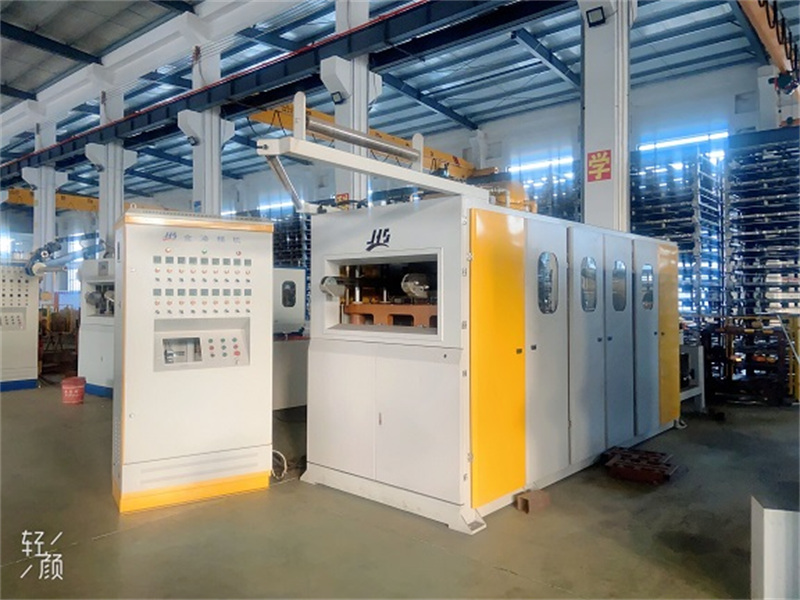

INTRODUCTION:
The machine mainly produce disposable packing machine,water cup,lunch box,soup bowl ,tray plastic product and so on.Such as jelly cup、ice cream cup、fruit vegetable box、elliptical box、round box、bread packing box,cake box,mooncake tray and so on.
性能特点：
1. 采用台湾油研配件组装的液压系统，具有稳定性强，寿命长的特点
2. 机器板面更大更宽，产量更多
3. 自动化程度更高，加装人性化小配件，操作更轻松舒服
4. 气缸拉伸结构，采用国产大品牌气缸
5. 整机结构紧凑，集送片、加热、成型、冲切，堆叠为一体化的设备
6. 升级版专业设计，以节能，环保，美观，实用的设计方式重新组合
Function:
1. The machine adopts TAIWAN Yuken solenoid valve assemble hydraulic system,has characteristics of strong stability and long life function
2. Machine forming area is larger,then machine production capacity is bigger
3. Higher automation, adding humanized accessories, and making the operation more comfortable and comfortable.
4. Air cylinder plug structure ,use Chinese big brand air cylinder
5. The whole machine is compact,which is make up of feeding、heating、forming、cutting and stacking function
6. Upgrade professional new design,energy saving, environmental protection, beautiful, practical design recombine.
性能技术参数Performance technical parameters
Model No./Parameter | 型号/参数 | HYC-720 | HYC-730 | HYC-750 | HYC-780 | HYC-900 Specical design 特殊定制款 |
Style | 款式 | 气缸(普通）Air Cylinder |
Available Material | 适应物料 | PP.PE.PET.HIPS.GPPS |
Forming Area(mm) | 成型面积（mm） | 720*300 | 720*370 | 730*450 | 760*510 | 850*600 |
Forming Depth(mm) | 成型深度（mm） | 120/180 |
Forming Speed(cycle/min) | 成型速度（转/分） | 25-35 |
Max Width(mm) | 最大片材宽度mm） | 720 | 720 | 730 | 730 | 780 |
Thickness(mm) | 片材厚度（mm） | 0.3-2 |
Power of Whole Machine (kw) | 整机功率（kw） | 70 | 75 | 85 | 95 | 105 |
Air comsumption(Mpa) | 耗气量(Mpa) | 0.6-0.8 |
Water comsumption(Mpa) | 耗水量（m3/h） | ≦0.5 | ≦0.5 | ≦0.5 | ≦0.5 | ≦0.6 |
Dimension(mm) | 规格（mm） | 6*1.3*2.2 | 6*1.4*2.2 | 6*1.5*2.2 | 6*1.8*2.2 | 10*2.1*2.3 |
Air cylinder size(mm) | 气缸规格（mm) | Ø80*180 | Ø90*180 Ø90*200 | Ø100*180 Ø100*200 | Ø125*200 |
|
Machine component | 整机组成部分 | Cup thermoforming machine+ Control cabinet+Reel unwinder+waste sheet winder主机+电柜+松片架+废边收卷 |
