性能技术参数 Performance technical parameters
型号 Model | HWSPC 110/110-1000 |
适应物料Available Material | PP PS HIPS GPPS PE 防雾剂 涂硅油 |
螺杆直径(MM)Diameter of Screw | 110/110 |
主电机功率（KW）Main Motor Power | 90/90-6极 |
最大挤出量（KG/H）Max Capacity | 250+250 |
片材厚度（MM）Thickness of Sheet | 0.25-2.3 |
片材宽度（MM）Width of Sheet | 860 |
三辊排列方式Arrangement of Roller | 卧式Horizontal |
总功率（KW）Total Power | 290 |
整机的外形尺寸（M）Outlook Size | 21*5.6*4.4 |
总重量(T)Total Weight | 16 |
设备简介：
双边共挤双色片材挤出机是我司近年开发的一款新型片材机，其特别之处在于，模头左右两边可以平衡挤出两种完全不一样颜色的片材，并且颜色分界线非常清晰，适用于防雾片材，硅油片材的生产;目前广泛运用于折叠饭盒的生产，底盒黑色，折叠盖透明，使得里面物品清晰可见，产品颇受欧美市场的喜爱
1 采用大长径比、塑化率高、挤出量大优质螺杆
2. 单螺杆结构挤出机
3. 双边特殊结构过渡体
4. 特殊结构分配器及模头
5. 采用特制硬质合金辊筒，受压强度更大，碾压幅度均匀，更易调节片材的厚薄度及透明度，厚度偏差小
6. 精密锋利圆滚切刀
7. 装有防雾，涂硅油，消除静电装置
8. 液压双层快速换网功能
9. 三辊卧式结构方便调节气动电动一体式
10. 配送熔体计量泵定量输送
11. 收卷结构可多选

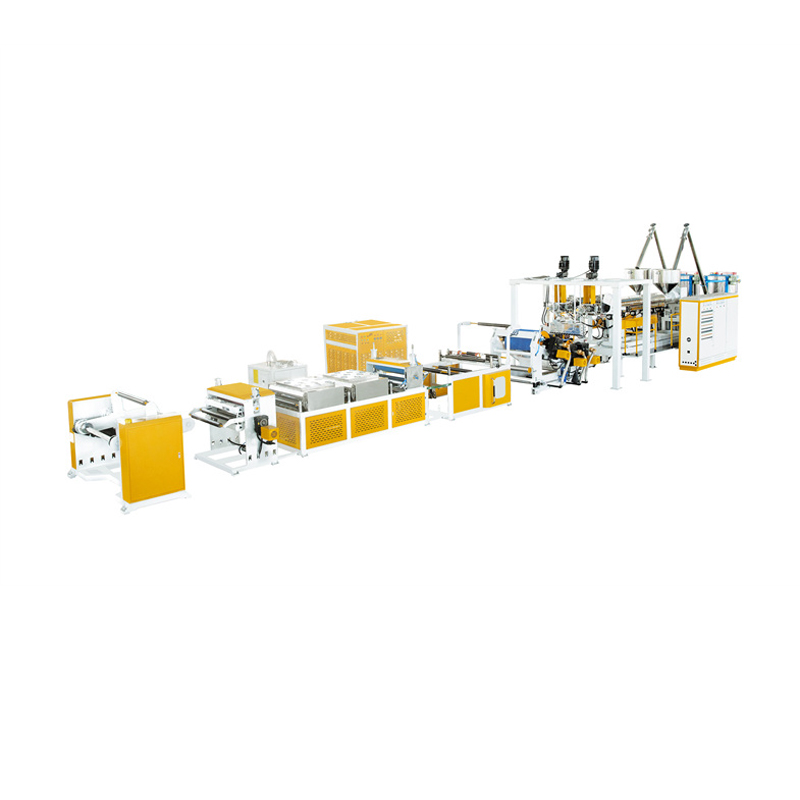

HWSPC Series double side co- extrusion two-color sheet extruder is a new sheet extruder developed by our company in recent years. Its special feature is that the left and right sides of the die head can balance extrude two completely different colors, and the color boundary is very clear. It is suitable for production of anti fog sheets and silicone oil sheets; At present, it is widely used in the production of folding lunch boxes. The bottom box is black and the folding cover is transparent, it is easy to see what it is of inside box from outsdie. The lunch box are popular in European and American markets .
1. Use high quality screw with large length diameter ratio,high plasticizing rate and large extrusion capacity
2. Single screw structure extrusion
3. Double side specially customised transition body structure
4. Specially designed distributor and die head structure
5. Specially customised harder alloy calender roller ,which has greater compression strength ,uniform rolling range,easy to adjust the thickness of sheet and make the sheet more transparent,small errort thickness
6. Precise sharp round waste sheet cutting blade
7. With antifog,silicone oil and electrostatic elimination device
8. Hydraulic double layers screen changer
9. Horizonal type calender structure ,pneumatic and electric adjustment together function
10. Melt pump quantitative transmission
11. Several type of rewinder structure can choose
