性能技术参数 Performance technical parameters
型号 Model | HXDPC 105/80/80-1000 | HWDPC 110/80-1400 |
适应物料Available Material | PP PS HIPS GPPS PE |
螺杆直径(MM)Diameter of Screw | 105/80/80 | 110/80 |
主电机功率（KW）Main Motor Power | 55/30/30 | 75/30 |
最大挤出量（KG/H）Max Capacity | 220+100+100 | 300+100 |
片材厚度（MM）Thickness of Sheet | 0.3-2 |
片材宽度（MM）Width of Sheet | 900 | 1200 600+600 |
三辊排列方式Arrangement of Roller | 斜式Oblique | 卧式Horizontal |
总功率（KW）Total Power | 265 | 215 |
整机的外形尺寸（M）Outlook Size | 16*4*2.2 | 16*3*2.6 |
总重量(T)Total Weight | 15 | 13 |

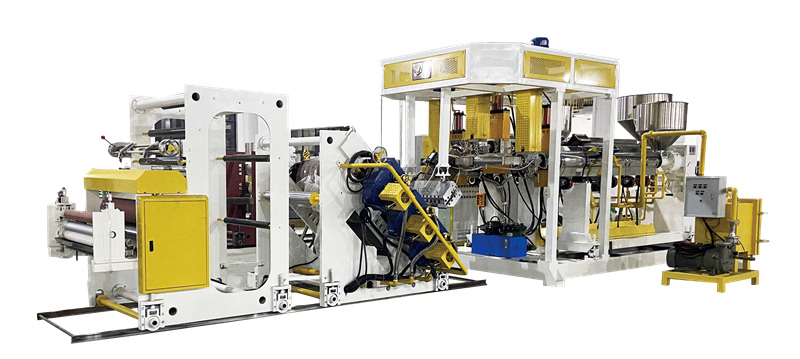

设备简介：
片材挤出机是我司经过长年的经验累积，并结合近几年客户的生产需要、市场需求，专门设计的一款具有高效、节能、操作方便的塑料片材设备。应用领域：食品包装、医药行业、电子包装、文具片材、吸塑领域，设备具备以下优势和功能：
1 适用原材料广泛
2 采用大长径比、塑化率高、挤出量大优质螺杆
3 采用研发设计的精密螺旋型电阻丝陶瓷纤维发热系统
4 采用特制硬质合金辊筒，受压强度更大，碾压幅度均匀，更易调节片材的厚薄度及透明度，厚度偏差小
5 高精度的分配器，模头，有助于出料均匀
6 立式与平行式过渡架可选，多种三辊结构可选，灵活根据客户的要求定制
7 液压双层快速换网功能
8 三辊调节可选气动，液压，手动，电动模式
9 收卷结构可多选
10 配送熔体计量泵定量输送
HDPC series sheet extruder is a kind of plastic sheet equipment with high efficiency, energy saving and convenient operation, which is specially designed by our company multi years of experience accumulating, combined with the production needs of customers and market demand in recent years.
Application areas: food packaging, pharmaceutical industry, electronic packaging,stationery, blister packing field，equipment has advantages and functions as below:
1 Applicable to a wide range of raw materials
2 High quality screw roller with large diameter length ratio, high plasticizing rate and large extrusion capacity
3 Adopt precision screw- type resistance wire ceramic fiber heating system
4 The special harder alloy roller ,greater compression strength, laminating uniformity ,and it is easier to adjust the thickness and transparency of the sheet,thickness errort small
5 High precision distributor, die head, helps to extrude evenly
6 Vertical and parallel transition frame optional,different types of calender structure optional, flexible customised according to customer’s request
7 Hydraulic double layers screen changer changing function
8 Calender structure adjustable can pneumatic ,hydraulic ,manual ,electric control optional
9 Multiple choices of winding structure
10 Adopting melt pump to transmit the fixed quantity
