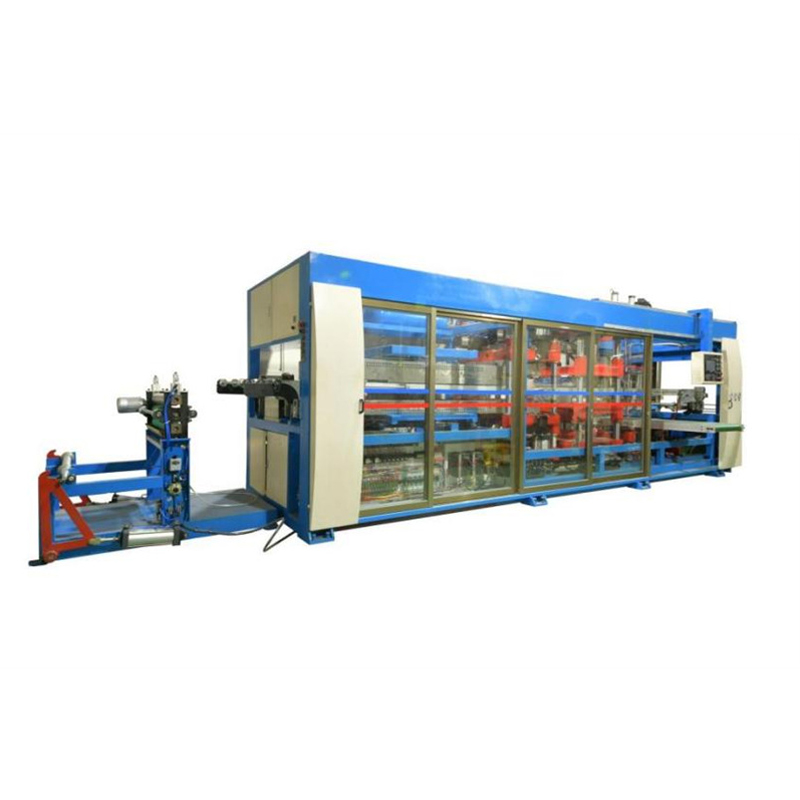

HDGW系列（Series) 正负压三工位成型机 Positive and negative pressure three station forming machine
性能特点：
1. 本机器集气动、电动、机械一体化功能; 整机动作由PLC输出控制，操作简易方便
2. 整机全伺服电机控制，定位精准，伺服送片，长度无级调整，高速运行稳定
3. 上、下炉分段控制，一对一智能控温，微调方便，节能省电
4. 正，负压成型模式，集成型、冲切、冲孔、堆叠、计数、输送为一体的全自动模式
5. 采用新型激光刀模，冲切精准，力度强劲
6. 前后链板电动调节宽度，使用方便
Function Characteristics
1. This machine integrates pneumatic, electric and mechanical functions; The action of the whole machine is controlled by PLC , and the operation is simple and convenient
2. The whole machine is controlled by full servo motor, with accurate positioning, servo feeding, stepless length adjustment, and stable high-speed operation
3. The upper and lower oven are controlled in sections, with one-to-one intelligent temperature control, convenient for little adjustment, energy saving
4. Positive and negative pressure forming mode, fully automatic integrating punching, punching holes, stacking, counting and conveying
5. The new laser knife cutting is adopted, with accurate punching and strong strength
6. The front and rear chain plates electrically adjust the width, which is convenient to use
Model | 型号 | HDGW-600 /HDGW-720 |
Available Material | 适应材料 | PP PS ABS PET PVC PETG APET HIPS PLA |
Adapt To Material Width(MM) | 适应片材宽度（MM) | 500-760 |
Adapt To Material Thickness(MM) | 适应片材厚度（MM) | 0.15-2 |
Forming Mould Open And Close Stroke(MM) | 成型模具开合行程（MM) | 2*155 |
Cutting Mould Open And Close Stroke(MM) | 冲切模具开合行程（MM) | 2*155 |
The Maximum Forming Area (MM2） | 最大成型面积（MM2） | 710*600/ 710*720 |
The Maximum Depth (MM） | 最大成型深度（MM） | 80/80 |
Air Pressure(MPA) | 气压（MPA) | 0.8 |
Vacuum Pump | 真空泵 | Busch R5 0040 |
Heating Power(KW) | 电炉加热功率（KW) | 54/75 |
Total Power(KW) | 整机最大功率（KW) | 165 |
Machine dimension (MM) | 整机外形尺寸（MM) | 11500*2000*2700 |
